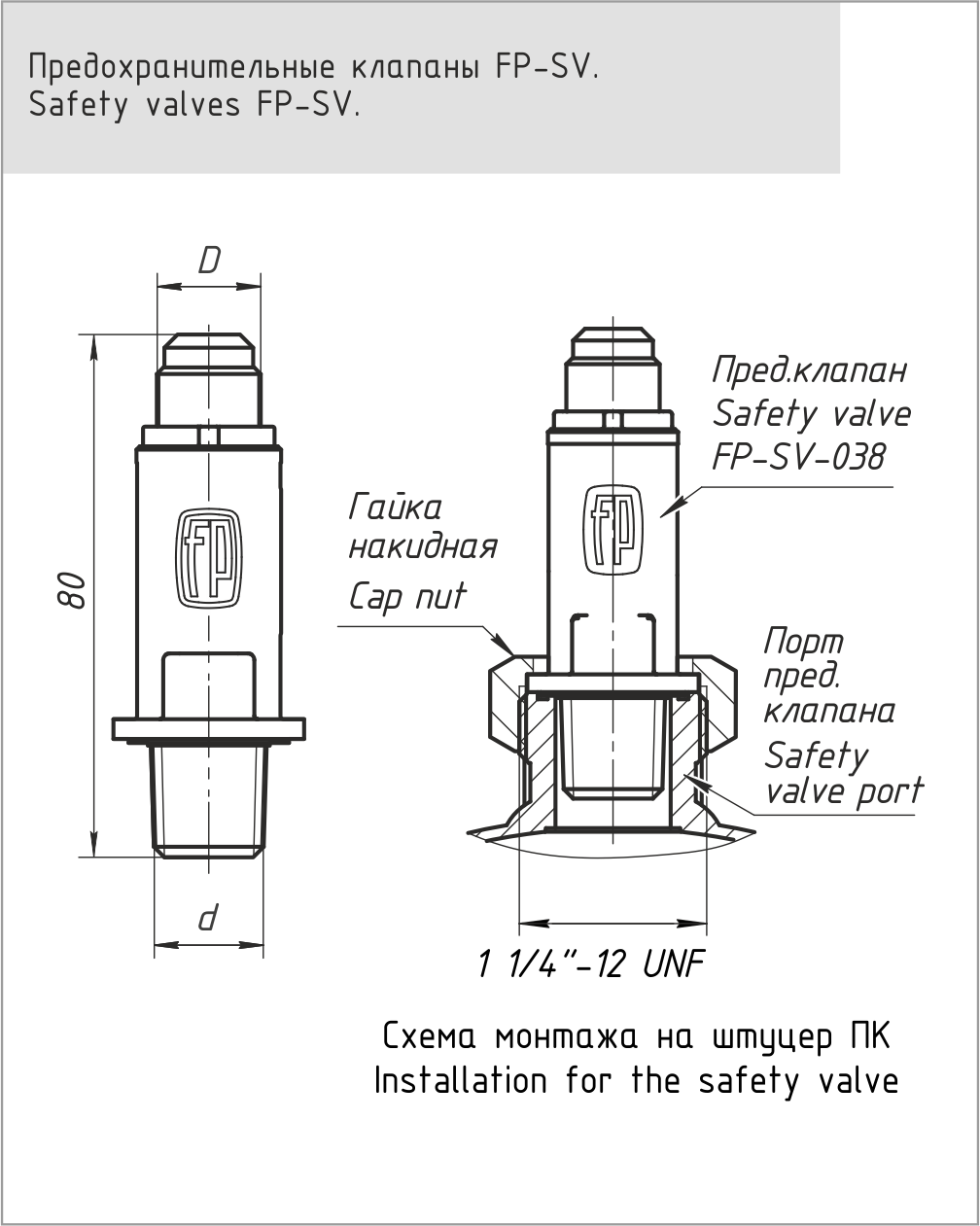

Safety valve FP-SV-038

Safety valve should be installed on all vessels that have a safety valve port. It is designed to protect the vessels working under pressure against excessive pressure by dumping excess fluid.
| Technical documentation >>
| Technical documentation >>
Model | Nominal pressure, MPa | In, D | Out, d |
---|---|---|---|
FP-SV-038 | 2,8 | 3/8" | 3/8" |
FP-SV(MP)-038 | 4,5 | 3/8" | 3/8" |
