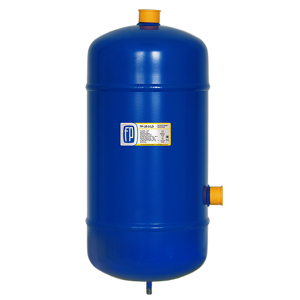

Vertical recievers. 10,0...16,0
Vertical line of FP-LR receivers is represented by models from 10.0 to 16.0 liters. Fixing vertical Type B receivers by means of a central pin with M8 thread.
| Technical documentation >>
| Technical documentation >>
| Model | Diameter, mm | Height, mm | In | Out | Sight glass, 1 1/4'' | SVP, 1 1/4" | Volume, L | Working pressure, MPa | Testing pressure, MPa | Certificate_EAC | Certificate_CE | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FP-LR-10,0 | 190 | 410 | 1" UN | 1" UN | - | + | 10.0 | 2,8 | 3,2 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/9be31a677e44f2c | |
| FP-LR-12,5 | 190 | 515 | 1" UN | 1" UN | - | + | 12.5 | 2,8 | 3,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/9be31a677e44f2c | |
| FP-LR-16,0 | 190 | 620 | 1" UN | 1" UN | - | + | 16.0 | 2,8 | 3,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/9be31a677e44f2c | + |
| FP-LR(MP)-10,0 | 190 | 410 | 1" UN | 1" UN | - | + | 10.0 | 4,5 | 5,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/9be31a677e44f2c | |
| FP-LR(MP)-12,5 | 190 | 515 | 1" UN | 1" UN | - | + | 12.5 | 4,5 | 5,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/9be31a677e44f2c | |
| FP-LR(MP)-16,0 | 190 | 620 | 1" UN | 1" UN | - | + | 16.0 | 4,5 | 5,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/9be31a677e44f2c |
