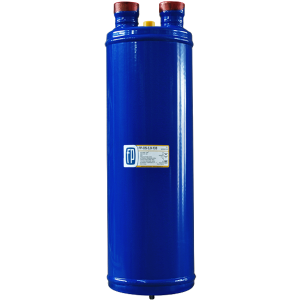

Oil separators. 2,0...7,0
Oil in refrigeration system contacts with refrigerant, being carried with it from a compressor to discharge line and spread out all over the system. Installed on discharge line oil separator separates oil droplets and prevents oil getting to heat exchangers. Design features FRIGOPOINTтм oil separators provide efficient separation of oil.
Oil separators range presented by models FP-OS-2,0...7,0. Oil separators FRIGOPOINTтм equipped with a stainless steel float mechanism, which provides efficient separation and automatic oil bypass to compressor crankcase; permanent
magnet catches up all microscopic iron particles out of the system. A fastener of 2,0 to 7,0 liters is central pin with thread M8, and to install type B there are four holes located around the circumference of the annular supporting area. All oil separators have inch inlet/outlet copper connections.
Oil separators range presented by models FP-OS-2,0...7,0. Oil separators FRIGOPOINTтм equipped with a stainless steel float mechanism, which provides efficient separation and automatic oil bypass to compressor crankcase; permanent
magnet catches up all microscopic iron particles out of the system. A fastener of 2,0 to 7,0 liters is central pin with thread M8, and to install type B there are four holes located around the circumference of the annular supporting area. All oil separators have inch inlet/outlet copper connections.
Model | Diameter, mm | OS_Coefficient_A | OS_Coefficient_B | Height, mm | In | Out | ORP | SVP, 1 1/4" | Volume, L | Working pressure, MPa | Testing pressure, MPa | Certificate_EAC | Certificate_CE |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FP-OS-2,0-012 | 102 | -10,791 | 113,8489 | 326 | 1/2" | 1/2" | + | - | 2.0 | 2,8 | 3,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/9be31a677e44f2c |
FP-OS-2,0-058 | 102 | -4 | 68,88 | 326 | 5/8" | 5/8" | + | - | 2.0 | 2,8 | 3,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/9be31a677e44f2c |
FP-OS-3,5-078 | 102 | -2,1598 | 58,7905 | 526 | 7/8" | 7/8" | + | - | 3.5 | 2,8 | 3,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/9be31a677e44f2c |
FP-OS-3,5-118 | 102 | -2 | 60 | 526 | 1 1/8" | 1 1/8" | + | - | 3.5 | 2,8 | 3,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/9be31a677e44f2c |
FP-OS-5,0-118 | 133 | -1,2161 | 77,01257 | 443 | 1 1/8" | 1 1/8" | + | - | 5.0 | 2,8 | 3,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/9be31a677e44f2c |
FP-OS-5,0-138 | 133 | -1,1485 | 79,11179 | 443 | 1 3/8" | 1 3/8" | + | - | 5.0 | 2,8 | 3,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/9be31a677e44f2c |
FP-OS-7,0-138 | 159 | -1,2275 | 99,56219 | 440 | 1 3/8" | 1 3/8" | + | - | 7.0 | 2,8 | 3,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/9be31a677e44f2c |
FP-OS-7,0-158 | 159 | -1,2 | 105,996 | 440 | 1 5/8" | 1 5/8" | + | - | 7.0 | 2,8 | 3,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/9be31a677e44f2c |
FP-OS(MP)-2,0-012 | 102 | -10.791 | 113.8489 | 326 | 1/2" | 1/2" | + | - | 2.0 | 4,5 | 5,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/9be31a677e44f2c |
FP-OS(MP)-2,0-058 | 102 | -4 | 68.88 | 326 | 5/8" | 5/8" | + | - | 2.0 | 4,5 | 5,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/9be31a677e44f2c |
FP-OS(MP)-3,5-078 | 102 | -2.1598 | 58.7905 | 526 | 7/8" | 7/8" | + | - | 3.5 | 4,5 | 5,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/9be31a677e44f2c |
FP-OS(MP)-3,5-118 | 102 | -2 | 60 | 526 | 1 1/8" | 1 1/8" | + | - | 3.5 | 4,5 | 5,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/9be31a677e44f2c |
FP-OS(MP)-5,0-118 | 133 | -1,2161 | 77,01257 | 443 | 1 1/8" | 1 1/8" | + | - | 5.0 | 4,5 | 5,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/9be31a677e44f2c |
FP-OS(MP)-5,0-138 | 133 | -1,1485 | 79,11179 | 443 | 1 3/8" | 1 3/8" | + | - | 5.0 | 4,5 | 5,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/9be31a677e44f2c |
FP-OS(MP)-7,0-138 | 159 | -1,2275 | 99,56219 | 440 | 1 3/8" | 1 3/8" | + | - | 7.0 | 4,5 | 5,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/9be31a677e44f2c |
FP-OS(MP)-7,0-158 | 159 | -1,2 | 105,996 | 440 | 1 5/8" | 1 5/8" | + | - | 7.0 | 4,5 | 5,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/9be31a677e44f2c |
