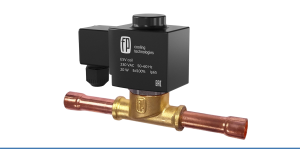

Solenoid valves FP-ESV
Solenoid valves FP-ESV – normally closed solenoid valves designed to shut off the flow of refrigerant in the liquid and suction pipelines of refrigeration and air conditioning systems. The valve is actuated by a coil by applying a control voltage. HFC, CFC, HCFC refrigerants can be used as a working medium, within the permissible operating pressures.
| Technical documentation >>
| Technical documentation >>

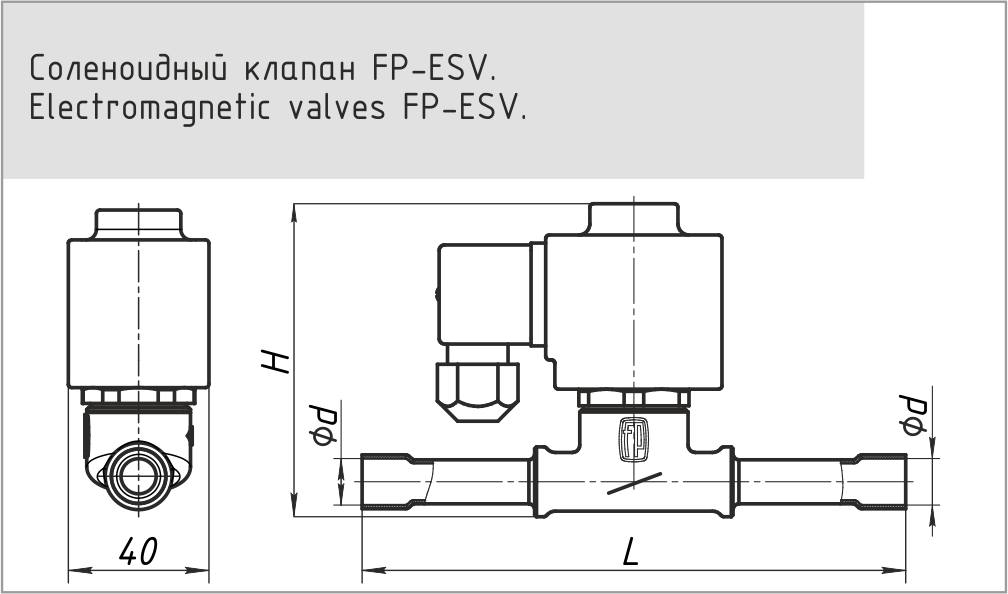

| Model | Kv m³/h | Diameter D, mm | Operation principle | Length, mm | Height, mm |
|---|---|---|---|---|---|
| FP-ESV3-014 | 0,27 | 1/4" (6,35 mm) | Прямой / Direct | 148 | 84 |
| FP-ESV3-038 | 0,27 | 3/8" (10,0 mm) | Прямой / Direct | 148 | 84 |
| FP-ESV6-038 | 0,8 | 3/8" (10,0 mm) | Пилотный / Pilot | 148 | 85 |
| FP-ESV10-012 | 1,9 | 1/2" (12,7 mm) | Пилотный / Pilot | 148 | 85 |
| FP-ESV10-058 | 1,9 | 5/8" (16,0 mm) | Пилотный / Pilot | 148 | 85 |
