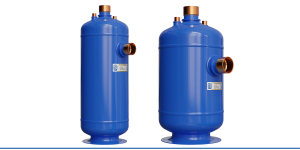

Suction accumulators with heat exchanger 25...45
The main task of the liquid separator is to prevent the compressor from running wet. This unit is required not only in all installations with flooded evaporators, but also in installations equipped with overheated evaporators, to prevent the accumulation of refrigerant in the liquid phase in the suction line.
| Technical documentation >>
| Technical documentation >>

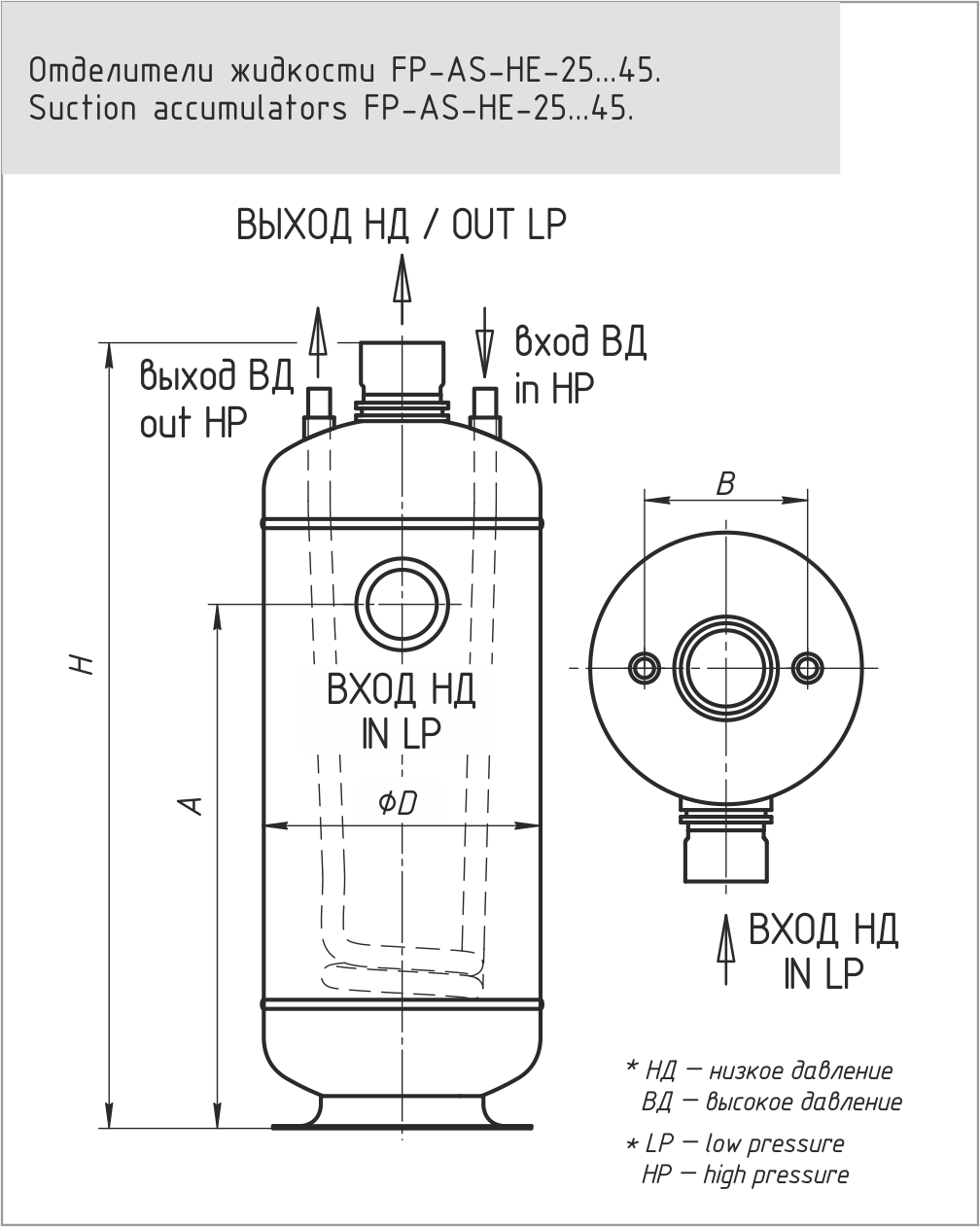

| Model | Diameter D, mm | Height, mm | Distance A, mm | Distance B, mm | In/Out Low pressure ODS(Cu) | In/Out High pressure ODS(Cu) | Volume, L |
|---|---|---|---|---|---|---|---|
| FP-AS(MP)-HE-25-218 | 240 | 677 | 455 | 144 | 2 1/8" (54,0 mm) | 3/4" (19,1 mm) | 25,0 |
| FP-AS(MP)-HE-25-258 | 240 | 677 | 455 | 144 | 2 5/8" (67,0 mm) | 3/4" (19,1 mm) | 25,0 |
| FP-AS(MP)-HE-45-258 | 325 | 658 | 414 | 200 | 2 5/8" (67,0 mm) | 7/8" (22,3 mm) | 45,0 |
| FP-AS(MP)-HE-45-318 | 325 | 658 | 414 | 200 | 3 1/8" (79,4 mm) | 7/8" (22,3 mm) | 45,0 |
