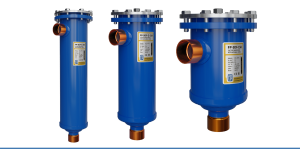

Filter-driers with replaceable core FP-SDF
Collapsible filter driers with replaceable cores can be used in liquid lines and suction lines for new systems and for cleaning the system after combustion of the compressor motor. Flanged lid allows fast replacement replaceable cartridge. The filter element (cartridge) is the optimal ratio of molecular sieves and activated alumina. The filter housing is made of steel and coated with a high-strength corrosion-resistant coating on the outside, has copper tubes to facilitate soldering.
| Technical documentation >>
| Technical documentation >>
| Model | Connection brazing | Length, mm | Distance A, mm | Height, mm | Volume, L |
|---|---|---|---|---|---|
| FP-SDF-058 | 5/8" | 227 | 147 | 84 | 48" cub |
| FP-SDF-078 | 7/8" | 234 | 154 | 91 | 48" cub |
| FP-SDF-2-118 | 1 1/8" | 382 | 302 | 92 | 96" cub |
| FP-SDF-2-078 | 7/8" | 379 | 299 | 91 | 96" cub |
| FP-SDF-118 | 1 1/8" | 245 | 163 | 92 | 48" cub |
| FP-SDF-138 | 1 3/8" | 243 | 163 | 96 | 48" cub |
| FP-SDF-3-138 | 1 3/8" | 533 | 453 | 96 | 144" cub |
| FP-SDF-3-158 | 1 5/8" | 534 | 454 | 96 | 144" cub |
| FP-SDF-3-218 | 2 1/8" | 544 | 444 | 103 | 144" cub |
| FP-SDF-2-218 | 2 1/8" | 399 | 299 | 103 | 96" cub |
| FP-SDF-3-258 | 2 5/8" | 554 | 454 | 109 | 144" cub |
| FP-SDF-2-258 | 2 5/8" | 409 | 309 | 109 | 96" cub |
| FP-SDF-2-158 | 1 5/8" | 389 | 309 | 96 | 96" cub |
| FP-SDF-2-138 | 1 3/8" | 388 | 308 | 96 | 96" cub |
| FP-SDF-158 | 1 5/8" | 244 | 164 | 96 | 48" cub |
| FP-SDF-218 | 2 1/8" | 254 | 159 | 103 | 48" cub |
| FP-SDF-258 | 2 5/8" | 264 | 169 | 109 | 48" cub |
