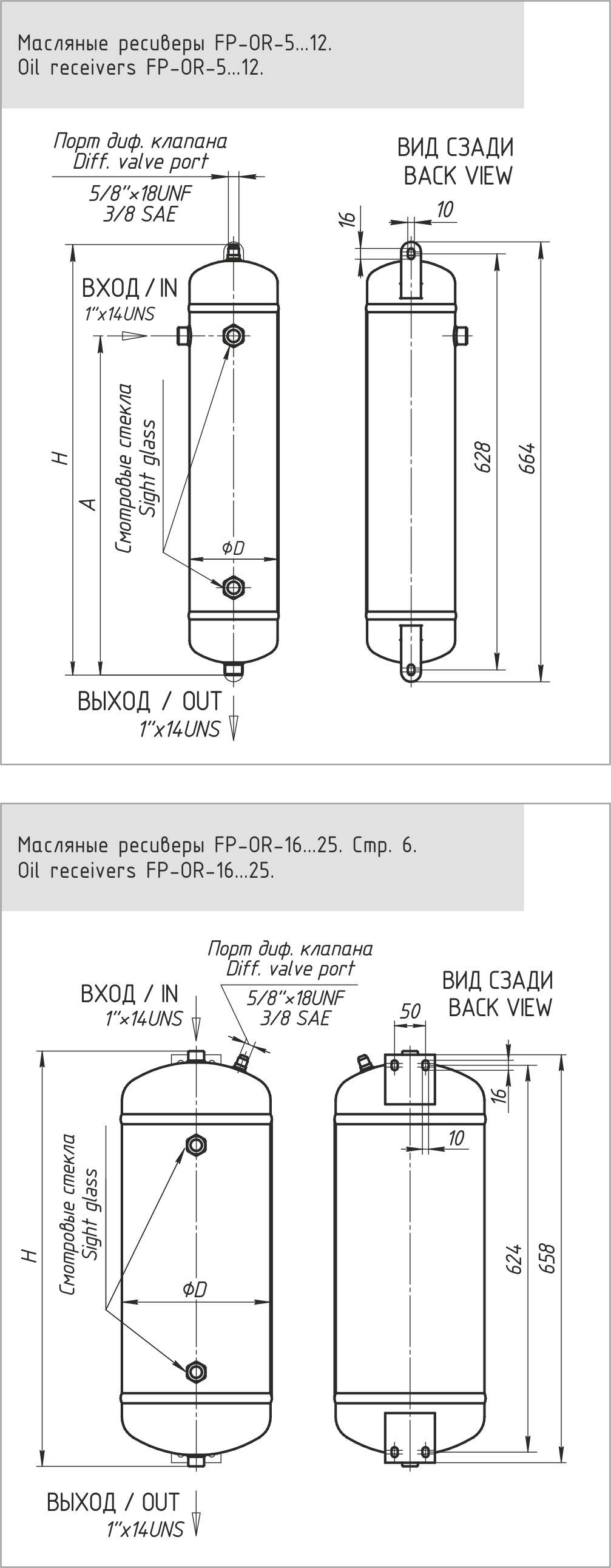

Oil Receivers FP-OR
Oil receivers range FP-OR presented by models from 5,0 to 25,0 l i ters i s desi gned for temporary storage of unused refrigeration system oil. All models have unified fastening – which is a big advantage. There are two ports for sight gl asses to moni tor oi l l evel and a port to connect differential check valve (3/8"SAE threaded 5/8" UNF ).
| Technical documentation >>
| Technical documentation >>
| Model | Diameter, mm | OR_Coefficient_A_for_2kompressor | OR_Coefficient_B_for_2kompressor | OR_Coefficient_A_for_3kompressor | OR_Coefficient_B_for_3kompressor | OR_Coefficient_A_for_4kompressor | OR_Coefficient_B_for_4kompressor | Height, mm | In | Out | Sight glass, 1 1/4'' | ORP, 3/8'' | Volume, L | Working pressure, MPa | Testing pressure, MPa | Certificate_EAC | Certificate_CE | SVP, 1 1/4" |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FP-OR-5,0 | 102 | -1,3333 | 10 | -2,4360 | 15,7247 | -400 | 10 | 664 | 1" | 1" | 2 | + | 5.0 | 2,8 | 3,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/9be31a677e44f2c | + |
| FP-OR-8,0 | 133 | -1,3333 | -2 | -2,6666 | 50 | 50 | 50 | 664 | 1" | 1" | 2 | + | 8.0 | 2,8 | 3,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/9be31a677e44f2c | + |
| FP-OR-12,0 | 159 | -0,5714285 | -0,8 | -2 | 44,285714 | 42 | 90 | 669 | 1" | 1" | 2 | + | 12.0 | 2,8 | 3,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/9be31a677e44f2c | + |
| FP-OR-16,0 | 190 | -0,5 | -0,8 | -1,02774922 | 70 | 82 | 71,664954 | 658 | 1" | 1" | 2 | + | 16.0 | 2,8 | 3,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/9be31a677e44f2c | + |
| FP-OR-25,0 | 240 | -0,444444 | -0,3125 | -0,44444 | 98,88888 | 53,75 | 50 | 658 | 1" | 1" | 2 | + | 25.0 | 2,8 | 3,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/9be31a677e44f2c | + |
| FP-OR(MP)-5,0 | 102 | -1,3333 | 10 | -2,4360 | 15,7247 | -400 | 10 | 664 | 1" | 1" | 2 | + | 5.0 | 4,5 | 5,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/9be31a677e44f2c | + |
| FP-OR(MP)-8,0 | 133 | -1,3333 | -2 | -2,6666 | 50 | 50 | 50 | 664 | 1" | 1" | 2 | + | 8.0 | 4,5 | 5,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/9be31a677e44f2c | + |
| FP-OR(MP)-12,0 | 159 | -0,5714285 | -0,8 | -2 | 44,285714 | 42 | 90 | 669 | 1" | 1" | 2 | + | 12.0 | 4,5 | 5,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/9be31a677e44f2c | + |
| FP-OR(MP)-16,0 | 190 | -0.5 | -0.8 | -1.0277 | 70 | 82 | 71.66495 | 658 | 1" | 1" | 2 | + | 16.0 | 4,5 | 5,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/9be31a677e44f2c | |
| FP-OR(MP)-25,0 | 240 | -0,444444 | -0,3125 | -0,44444 | 98,88888 | 53,75 | 50 | 658 | 1" | 1" | 2 | + | 25.0 | 4,5 | 5,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/9be31a677e44f2c | + |
