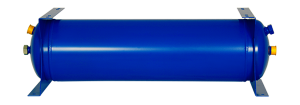

Horizontal recievers. 16,0...70,0
Horizontal FP-LRH-16,0...70,0 receivers range presented by models from 12,0 to 70,0. Horizontal receivers is a versatile platform for the various refrigeration
unit configurations.
| Technical documentation >>
unit configurations.
| Technical documentation >>
| Model | Diameter, mm | Length, mm | In | Out | Sight glass, 1 1/4'' | SVP, 1 1/4" | Volume, L | Working pressure, MPa | Testing pressure, MPa | Certificate_EAC | Certificate_CE |
|---|---|---|---|---|---|---|---|---|---|---|---|
| FP-LRH-16,0 | 159 | 938 | 1" UN | 1" UN | - | + | 16.0 | 2,8 | 3,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/9be31a677e44f2c |
| FP-LRH-25,0 | 190 | 982 | 1 1/4" UN | 1 1/4" UN | 1 | + | 25.0 | 2,8 | 3,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/9be31a677e44f2c |
| FP-LRH-40,0 | 240 | 976 | 1 1/4" UN | 1 1/4" UN | 1 | + | 40.0 | 2,8 | 3,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/9be31a677e44f2c |
| FP-LRH-70,0 | 325 | 1011 | 1 3/4" UN | 1 3/4" UN | 1 | + | 70.0 | 2,8 | 3,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/9be31a677e44f2c |
| FP-LRH(MP)-16,0 | 159 | 938 | 1" UN | 1" UN | - | + | 16.0 | 4,5 | 5,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/9be31a677e44f2c |
| FP-LRH(MP)-25,0 | 190 | 982 | 1 1/4" UN | 1 1/4" UN | 1 | + | 25.0 | 4,5 | 5,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/9be31a677e44f2c |
| FP-LRH(MP)-40,0 | 240 | 976 | 1 1/4" UN | 1 1/4" UN | 1 | + | 40.0 | 4,5 | 5,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/9be31a677e44f2c |
| FP-LRH(MP)-70,0 | 325 | 1011 | 1 3/4" UN | 1 3/4" UN | 1 | + | 70.0 | 4,5 | 5,5 | http://www.frigopoint.com/files/download/b41d3ff421e4366 | http://www.frigopoint.com/files/download/4660bbeca173555 |
