4.09.2024
Question
Question: Is it possible to connect several FP-MC-23EM controllers to one pressure sensor?

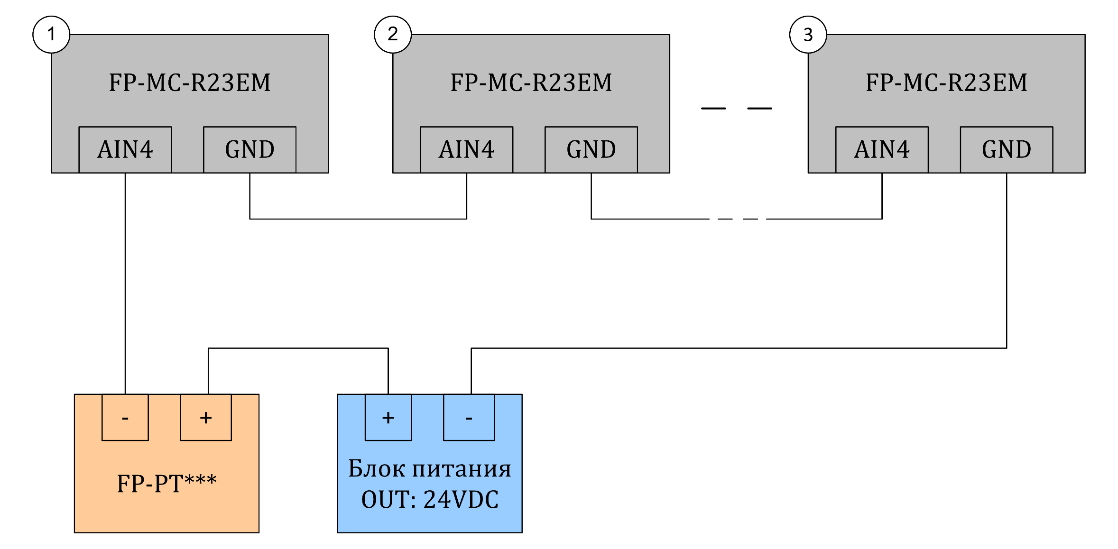

Answer: Yes, such a connection is possible using an external power supply. The connection diagram looks like this. It is possible to connect up to 3 controllers.
Please note that the readings of the sensor installed on the common pipeline may differ from the actual boiling pressure in a specific evaporator. In some cases, the difference may be described by a nonlinear function and additional adjustment of the read signal level may be required.
Answer: Yes, such a connection is possible using an external power supply. The connection diagram looks like this. It is possible to connect up to 3 controllers.
Please note that the readings of the sensor installed on the common pipeline may differ from the actual boiling pressure in a specific evaporator. In some cases, the difference may be described by a nonlinear function and additional adjustment of the read signal level may be required.
Answer
Question: Is it possible to connect several FP-MC-23EM controllers to one pressure sensor?
Answer: Yes, such a connection is possible using an external power supply. The connection diagram looks like this. It is possible to connect up to 3 controllers.
Please note that the readings of the sensor installed on the common pipeline may differ from the actual boiling pressure in a specific evaporator. In some cases, the difference may be described by a nonlinear function and additional adjustment of the read signal level may be required.
Answer: Yes, such a connection is possible using an external power supply. The connection diagram looks like this. It is possible to connect up to 3 controllers.
Please note that the readings of the sensor installed on the common pipeline may differ from the actual boiling pressure in a specific evaporator. In some cases, the difference may be described by a nonlinear function and additional adjustment of the read signal level may be required.
There are no comments
